ECCS B320
The ECCS B320 is an electro-chemical reaction visualizing confocal system that enables operand observation of lithium-ion batteries. It observes the electrode cross-section in real-time during charge/discharge cycles and visualizes the internal reactions of the battery.
With the real-color confocal optical system, it can observe color changes in electrode materials with high precision, providing important information for battery performance evaluation and research and development.

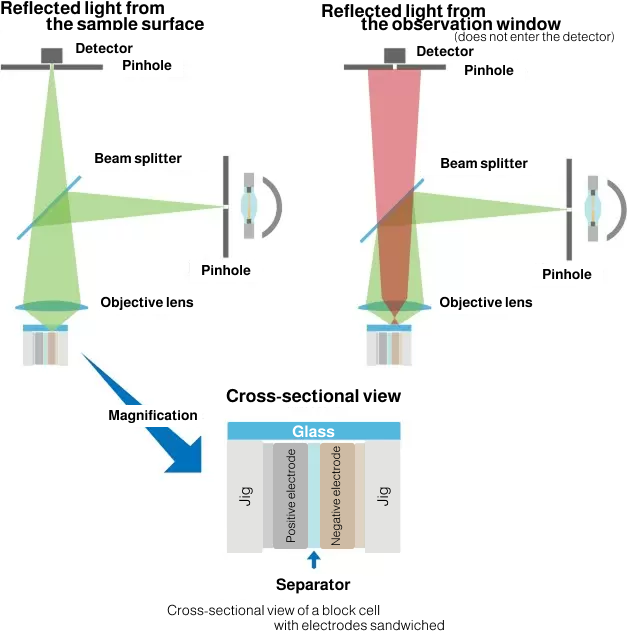

Real-color confocal optics
Real-color confocal optics is designed to collect reflected light from the focal plane (the surface of active materials on electrode) without being affected by the glass surface or electrolyte, providing high-resolution color images with good color separation.

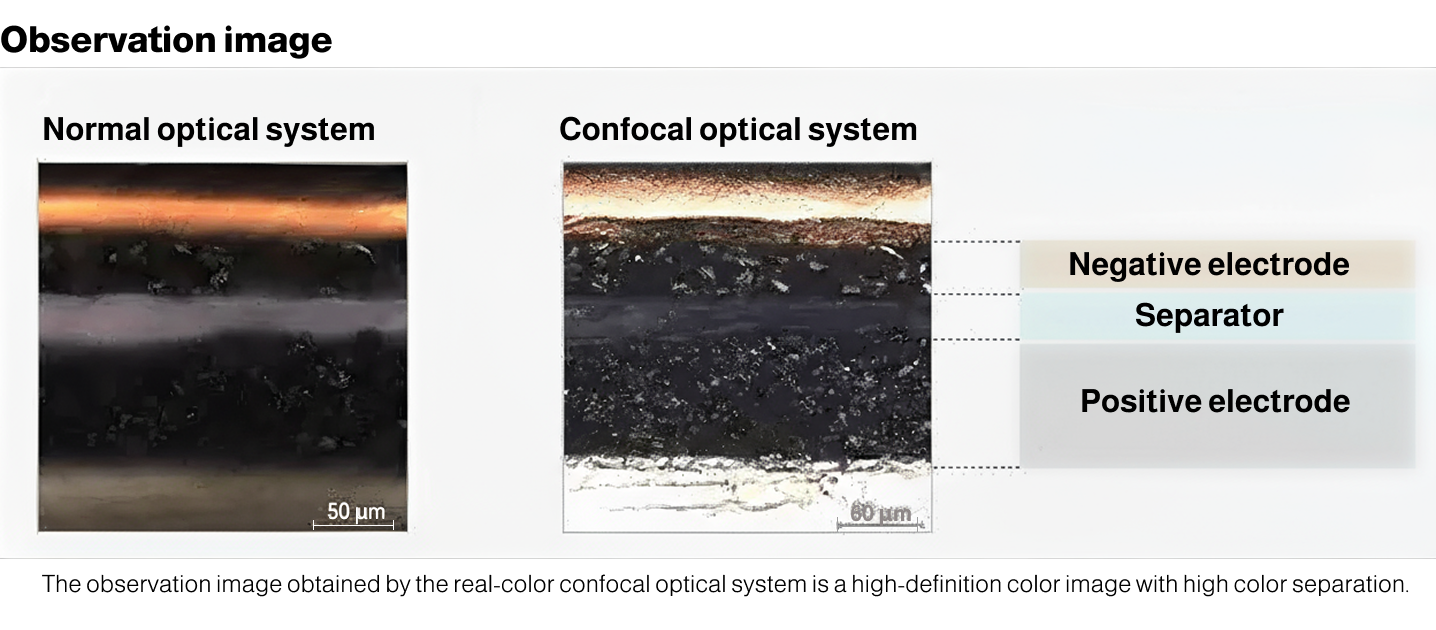

The observation images provided by real color confocal optics are high-definition color images with good color separation
