Electro-Chemical Reaction Visualizing Confocal System
ECCS B320
Enables Operand Observation of Lithium-ion Batteries
The ECCS B320 is an electro-chemical reaction visualizing confocal system that enables operand observation of lithium-ion batteries. It observes the electrode cross-section in real-time during charge/discharge cycles and visualizes the internal reactions of the battery.
With the real-color confocal optical system, it can observe color changes in electrode materials with high precision, providing important information for battery performance evaluation and research and development.

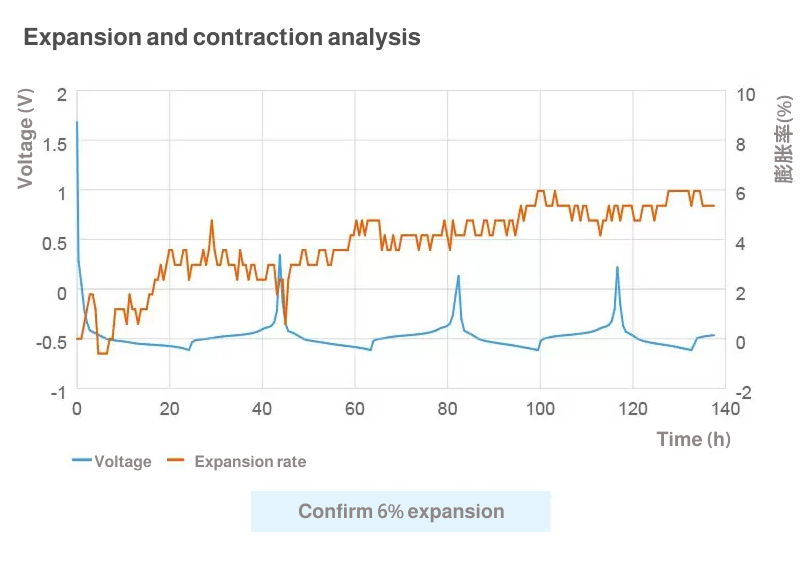

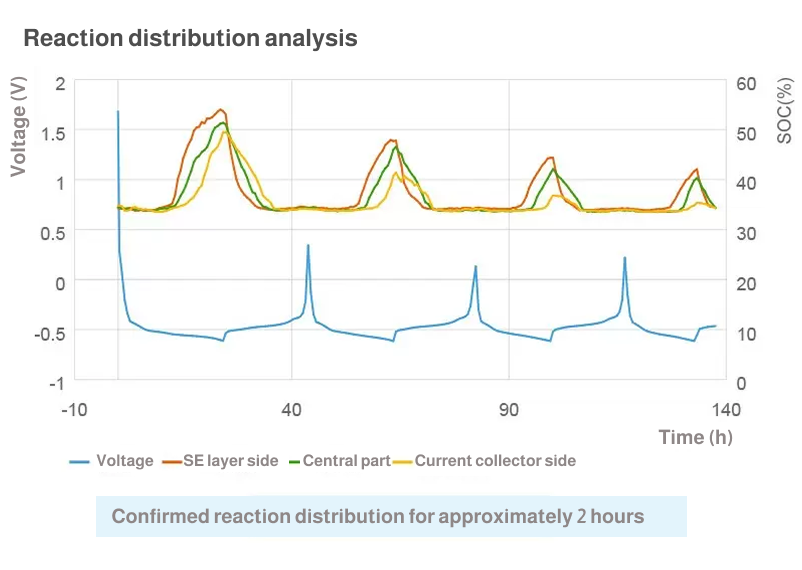

Solid state battery
Sample by Prof. Hayashi, Osaka Prefecture University
※Click the screen to watch the video.
※This is a fast-forwarded replay.
| Working electrode | Graphite ：SE = 50：50（wt.%） |
| Counter electrode | Li-In |
| Solid state electrolyte | Li2S・P2S5 |
| C-rate | 0.03C |
