ECCS B320
The ECCS B320 is an electro-chemical reaction visualizing confocal system that enables operand observation of lithium-ion batteries. It observes the electrode cross-section in real-time during charge/discharge cycles and visualizes the internal reactions of the battery.
With the real-color confocal optical system, it can observe color changes in electrode materials with high precision, providing important information for battery performance evaluation and research and development.

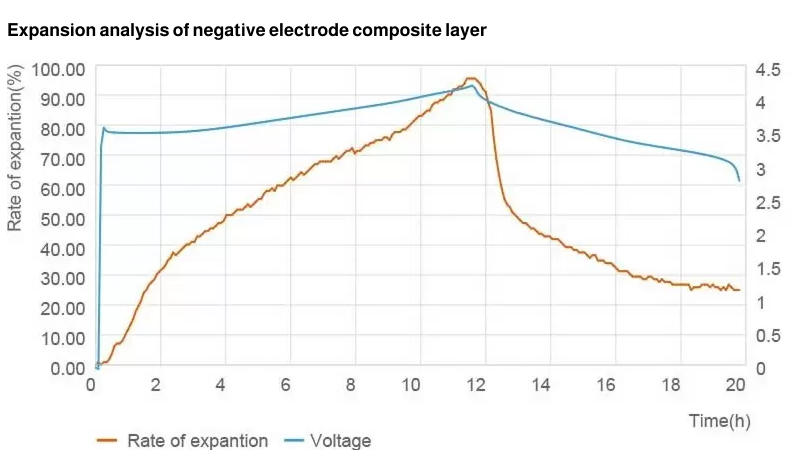

Analysis of expansions and contractions

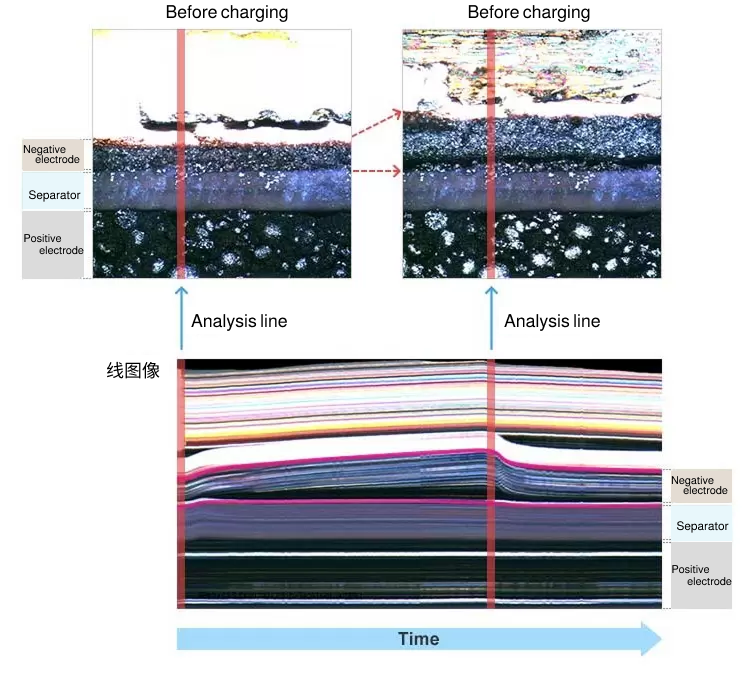

The expansion/contraction analysis using ECCS enables small-change measurement and real-time analysis, neither of which is possible with a micrometer or displacement gauge. ECCS can create a "line image" by slicing a captured image at a user-specified line of analysis and by aligning successive sliced images in a chronological order. You can select a mixture layer and conduct measurement on the line image.
